• Black plastic stepwell pads
• Black vinyl floor covering
• Color-keyed cowl grab handles
• Dash sound absorber
• Driver & passenger black cowl trim panels
• Dual color-keyed vinyl sunvisors
• Dual high back vinyl bucket seats w/inboard armrests
• Electronic AM/FM stereo-inc: digital clock, (2) speakers
• Front air conditioning
• Front dome light
• Front door courtesy light switches
• Front vinyl-faced molded headliner
• Key in ignition warning chime
• Medium Flint-color door trim panels w/single stowage area
• Medium Flint-color instrument panel-inc: 12-volt pwr point, tachometer
• Tilt steering wheel

• 115 amp alternator
• 14,050# GVWR/8620# payload
• 16" x 6" steel wheels
• 4-wheel anti-lock brakes (ABS)
• 4.56 axle ratio
• 4600# capacity front coil springs
• 4600# capacity twin-I-beam front axle
• 72 amp/hr (650 CCA) maintenance free HD battery
• 9450# capacity full-floating rear axle
• 9450# capacity rear single-stage multi-leaf springs
• Auxiliary fuel port
• Dual rear wheels
• Electronic throttle control
• Handling pkg-inc: front stabilizer bar, HD front & rear shock absorbers
• LT225/75R16E all-season BSW tires
• Modified vehicle wiring kit & system
• Pwr 4-wheel disc brakes
• Pwr steering w/HD steering gear
• Rear wheel drive
• Steel valve stems

• 4-wheel anti-lock brakes (ABS)
• Driver & front passenger 2nd generation air bags
• Medium Flint-color safety belts w/height adjustable D-ring
• Single note horn

6.8L SOHC EFI TRITON V10 ENGINE

• (STD)

• Adjustable Steering Wheel
• Power Outlet

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 115
• Maximum Alternator Watts: 1725
• Cooling System
• Total Cooling System Capacity (qts): 30.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4600
• Gross Axle Wt Rating - Rear (lbs): 9450
• Curb Weight - Front (lbs): 2969
• Curb Weight - Rear (lbs): 2508
• Gross Vehicle Weight Rating Cap (lbs): 14,050
• Gross Combined Wt Rating (lbs): 18,500
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 1-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4600
• Spring Capacity - Rear (lbs): 9450
• Axle Type - Front: Twin I-Beam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4600
• Axle Capacity - Rear (lbs): 9450
• Axle Ratio (:1) - Rear: 4.56
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.00
• Stabilizer Bar Diameter - Rear (in): 1.13
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.03 x .478
• Rear Brake Rotor Diam x Thickness (in): 12.90 x .541
• Tires
• Front Tire Order Code: T67
• Rear Tire Order Code: T67
• Front Tire Size: LT225/75R16E
• Rear Tire Size: LT225/75R16E
• Front Tire Capacity (lbs): 2680
• Rear Tire Capacity (lbs): 2680
• Revolutions/Mile @ 45 mph - Front: 709
• Revolutions/Mile @ 45 mph - Rear: 709
• Wheels
• Front Wheel Size (in): 16 x 6
• Rear Wheel Size (in): 16 x 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 54.1
• Turning Diameter - Wall to Wall (ft): 56.7
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 55
• Fuel Tank Location: Aft Of Rear Axle
• Exterior Dimensions
• Wheelbase (in): 158
• Length, Overall w/o rear bumper (in): 257.4
• Overhang, Front (in): 30.0
• Overhang, Rear w/o bumper (in): 68.5
• Ground to Top of Frame (in): 22.5
• Frame Width, Rear (in): 42.0
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 42.5
• Front Leg Room (in): 40.0
• Front Shoulder Room (in): 68.4
• Front Hip Room (in): 65.6
• Summary

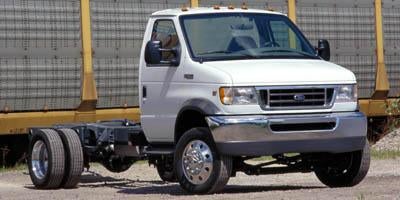

• Vehicle Name: Ford Econoline Commercial Cutaway
• Body Style: Cutaway DRW
• Body Code: 158" WB
