• Coat hooks, driver and passenger side
• Door locks, manual
• Door trim, with integral armrest, driver and passenger side map pockets
• Fleet Trim, includes sealed beam headlamps, Grille, composite, Light Charcoal surround and center bar, Bumpers, front and rear, painted silver, (QCE) Tires, P205/75R15 all-season, blackwall, (PG1) Wheels, 15"x6" (38.1 cm x 15.2 cm), steel, (AM6) Seats, front, 60/40 split-bench, vinyl floor covering and molded plastic door trim (Requires a Fleet Account Number (FAN))
• Floor covering, embossed rubberized vinyl full width floor covering
• Mirror, inside rearview, prismatic
• Power outlets, auxiliary, covered, 2, 12-volt
• Seats, front, Base Cloth, 60/40 split-bench, integral outboard head restraints and dual cupholders
• Sound system, ETR AM/FM stereo, includes seek-and-scan, digital clock, 2-speakers on Regular Cab and Chassis Cab Models and 4-speakers on Extended Cab models (May be substituted with (UL5) Sound system, delete)
• Steering column, non-tilt, steel sleeve, includes theft-deterrent locking feature
• Steering wheel, 4-spoke
• Theft-deterrent system, PASSLock
• Visors, padded, Cloth, includes vanity mirror, passenger-side
• Warning tones, headlamp on, key-in-ignition, driver safety belt unfasten, turn signal on, critical Driver Information Center active
• Windows, manual, driver and front passenger

• Alternator, 100 amps
• Battery, heavy-duty, 690 cold-cranking amps, includes rundown protection
• Brakes, 4-wheel antilock, front disc/rear drum
• Jounce bumpers, rubber
• Pickup box, Fleetside, all-welded steel with double wall construction and corrosion protection with 8 cargo tie-downs and tailgate, locking, 2-position
• Rear wheel drive
• Shock absorber, gas charged, hydraulic
• Steering, power, rack-and-pinion
• Suspension Package, Standard
• Suspension, front, independent coil springs
• Suspension, rear, semi-floating axle with 2-stage multi-leaf springs
• Tire, spare, compact, located at rear underbody of vehicle (Upgradeable to (ZCE) Tire, spare, P205/75R15 all-season for Fleet or Government types on CS15403. Upgradeable to (ZCE) Tire, spare, P205/75R15 all-season on CS15653 or (ZFL) Tire, spare, P235/75R15, all-season, blackwall on 4WD Models on all order types)
• Tires, P205/75R15, all-season, blackwall
• Wheels, 4 - 15" x 6" (38.1 cm x 15.2 cm) steel

• Air bags, frontal, driver and right front passenger, includes passenger side deactivation switch (Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owner's Manual for more safety information)
• Brakes, 4-wheel antilock, front disc/rear drum
• Daytime running lamps, includes automatic exterior lamp control
• Safety belts, 3-point, outboard, driver and front passenger, adjustable with center front position lap belt

ENGINE, 2.8L DOHC, 4-CYLINDER, MFI

• (175 HP [130.5 kW] @ 5600 rpm
• 185 lb.-ft. [249.7 N-m] @ 2800 rpm) (STD) Refer to the Engine and Axle section for compatibility requirements.

• Cloth Seats
• Third Passenger Door
• Power Outlet

• Mileage
• EPA Fuel Economy Est - City (MPG): 21
• EPA Fuel Economy Est - Hwy (MPG): 27
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 690
• Maximum Alternator Capacity (amps): 100
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2533
• Gross Axle Wt Rating - Rear (lbs): 2900
• Curb Weight - Front (lbs): 1904
• Curb Weight - Rear (lbs): 1432
• Gross Vehicle Weight Rating Cap (lbs): 5000
• Gross Combined Wt Rating (lbs): 5500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 600
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 330
• Suspension
• Suspension Type - Front: Coil Springs
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2535
• Spring Capacity - Rear (lbs): 2900
• Axle Type - Front: Independent Coil
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 2533
• Axle Capacity - Rear (lbs): 2900
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 30
• Shock Absorber Diameter - Rear (mm): 30
• Stabilizer Bar Diameter - Front (in): 1.10
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11 x 1.1
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.6 x 1.8
• Tires
• Front Tire Order Code: QET
• Rear Tire Order Code: QET
• Front Tire Size: P225/75R15
• Rear Tire Size: P225/75R15
• Spare Tire Size: Compact
• Front Tire Capacity (lbs): 3406
• Rear Tire Capacity (lbs): 3406
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 15 x 6.5
• Rear Wheel Size (in): 15 x 6.5
• Spare Wheel Size (in): Compact
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.4
• Steering Ratio (:1), At Lock: 3.31
• Turning Diameter - Curb to Curb (ft): 44.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19.6
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 126.0
• Length, Overall w/o rear bumper (in): 207.1
• Width, Max w/o mirrors (in): 67.6
• Height, Overall (in): 64.9
• Overhang, Front (in): 33.9
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 125.6
• Cab to Axle (in): 34.2
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 26.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.3
• Ground Clearance, Rear (in): 7.3
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 72.8
• Cargo Box Width @ Floor (in): 57.2
• Cargo Box Width @ Wheelhousings (in): 42.6
• Cargo Box (Area) Height (in): 18.6
• Tailgate Width (in): 52.4
• Cargo Volume (ft³): 44
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.6
• Front Leg Room (in): 42.2
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): 53.3
• Second Head Room (in): 37.9
• Second Leg Room (in): 23.1
• Second Shoulder Room (in): 57.2
• Second Hip Room (in): 57.6
• Summary

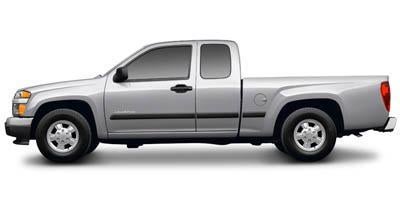

• Vehicle Name: Chevrolet Colorado
• Body Style: Extended Cab
• Body Code: E63
